Barnums pliants V3

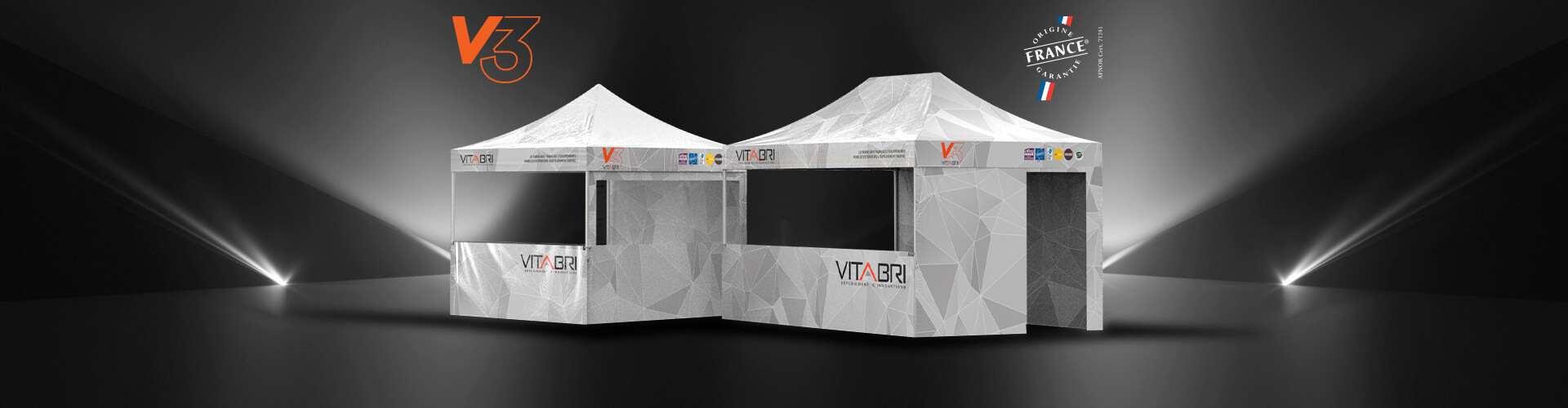

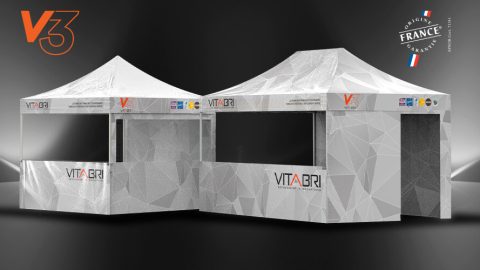

V3 popup gazebo: Our best-seller

V3 PRO gazebo: for regular professional use

Available in 20 sizes, the V3 PRO range is the ideal solution for regular professional use.

Entirely customisable, the V3 PRO folding canopy tent offers a wide choice of printing techniques, M2 flame-retardant technical textiles and accessories. There are multiple ways of adapting it to meet your needs and serve your purposes.

The V3 Pro gazebo is a favourite with sports teams, sports brands, shopkeepers, market traders, relief organisations, construction companies, local authorities, clubs and associations, etc.

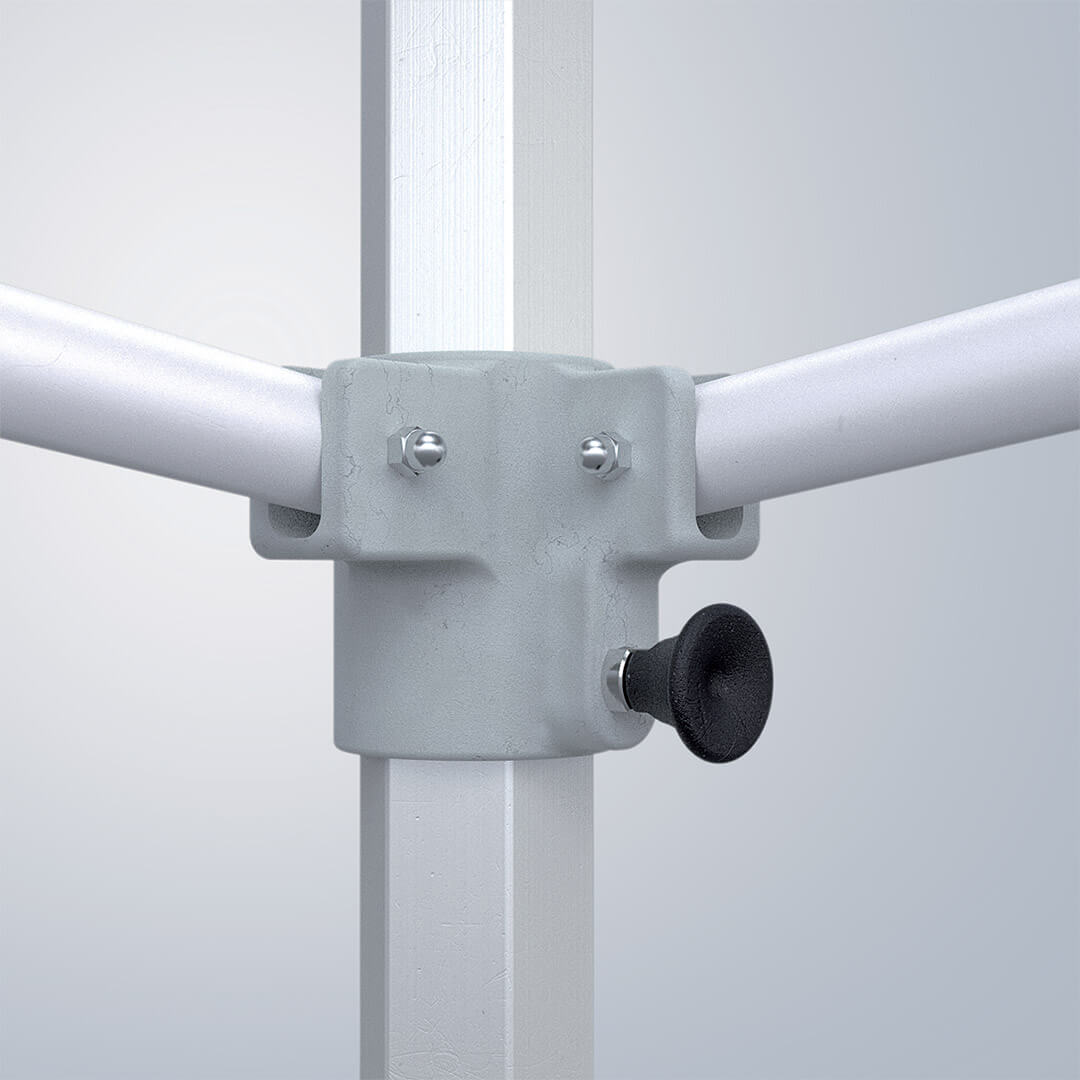

Indexeur Barnum Pliant V3 Pro

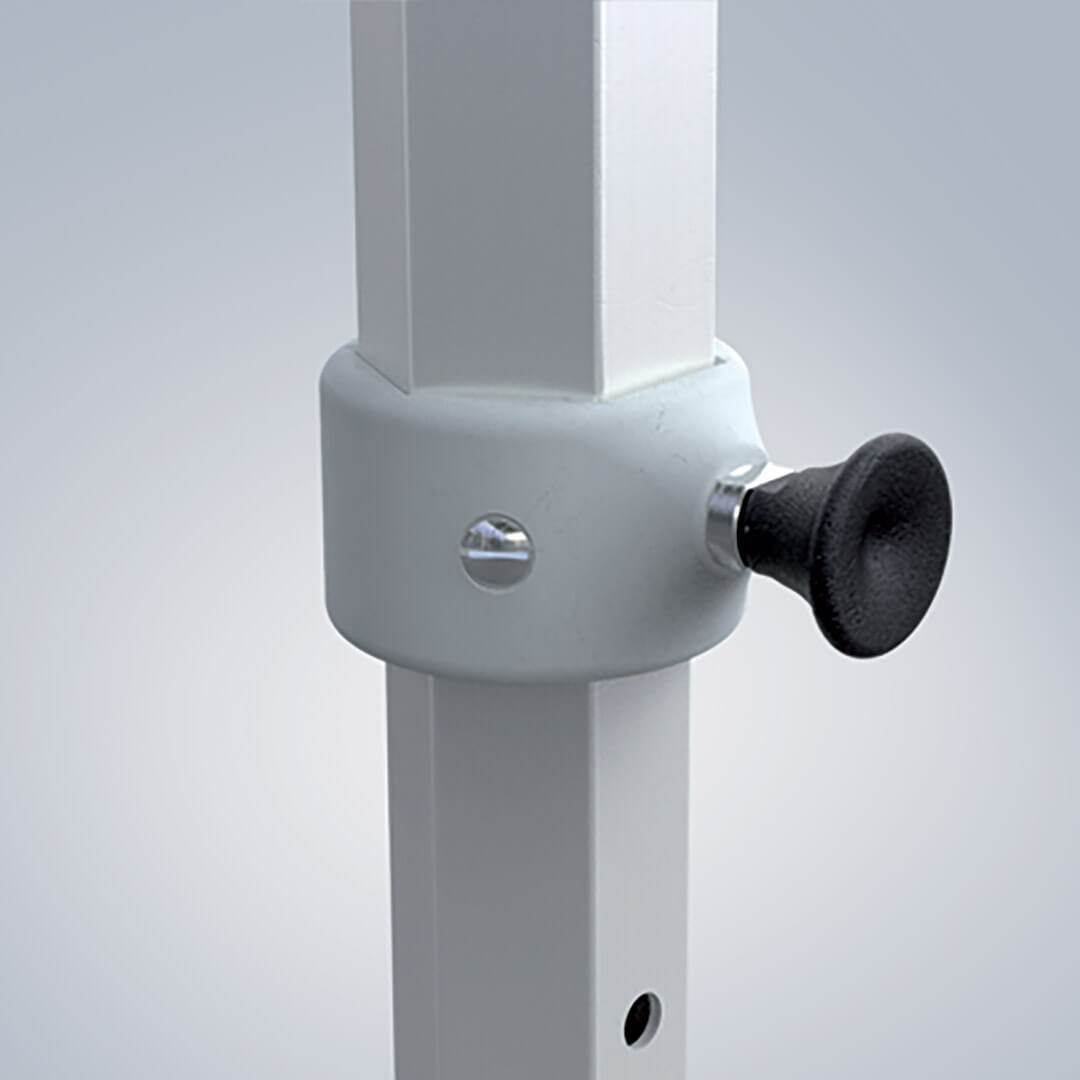

Indexeur Pieds barnum pliant V3 Pro Vitabri

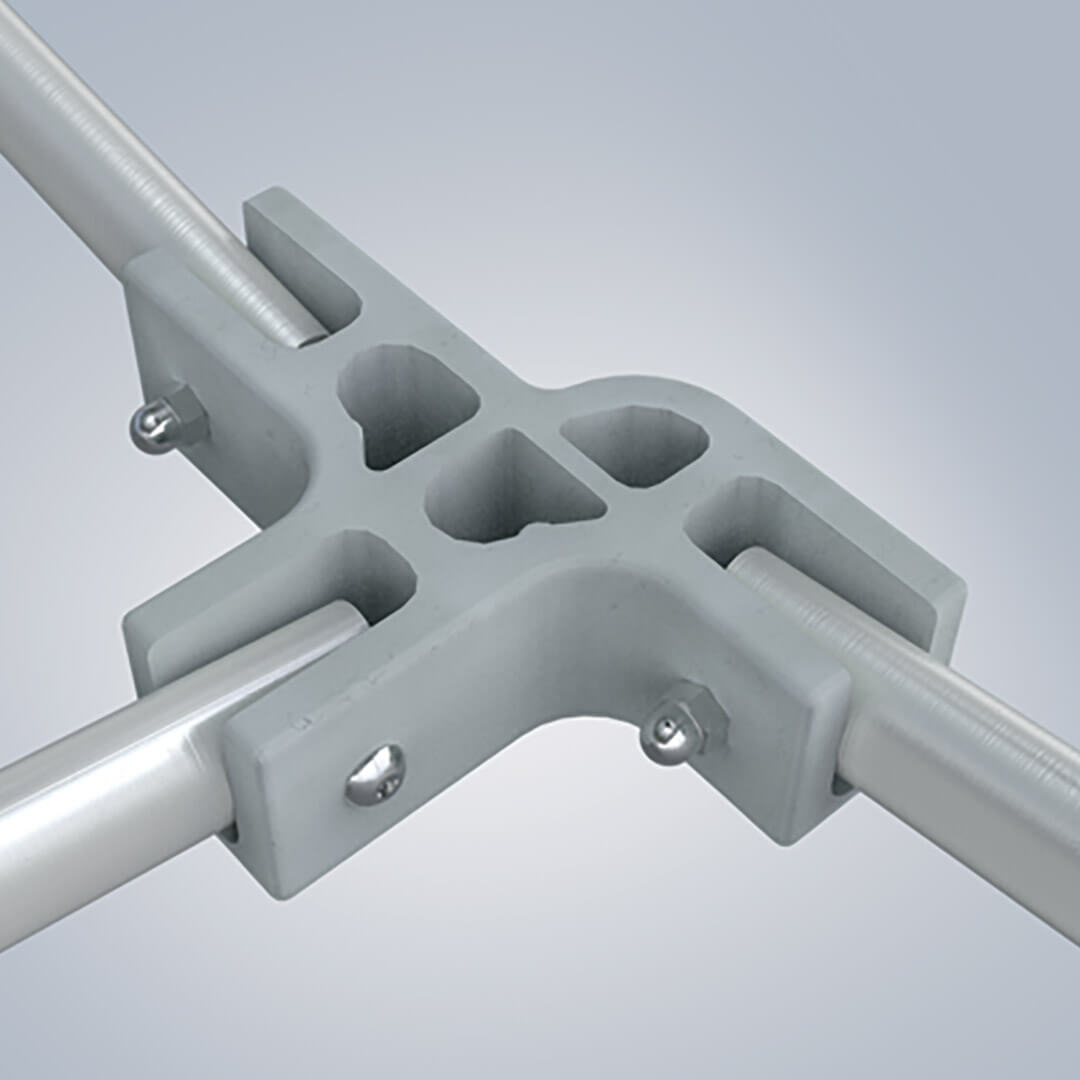

Jonction renforcée barnum plaint Vitbri V3 Pro

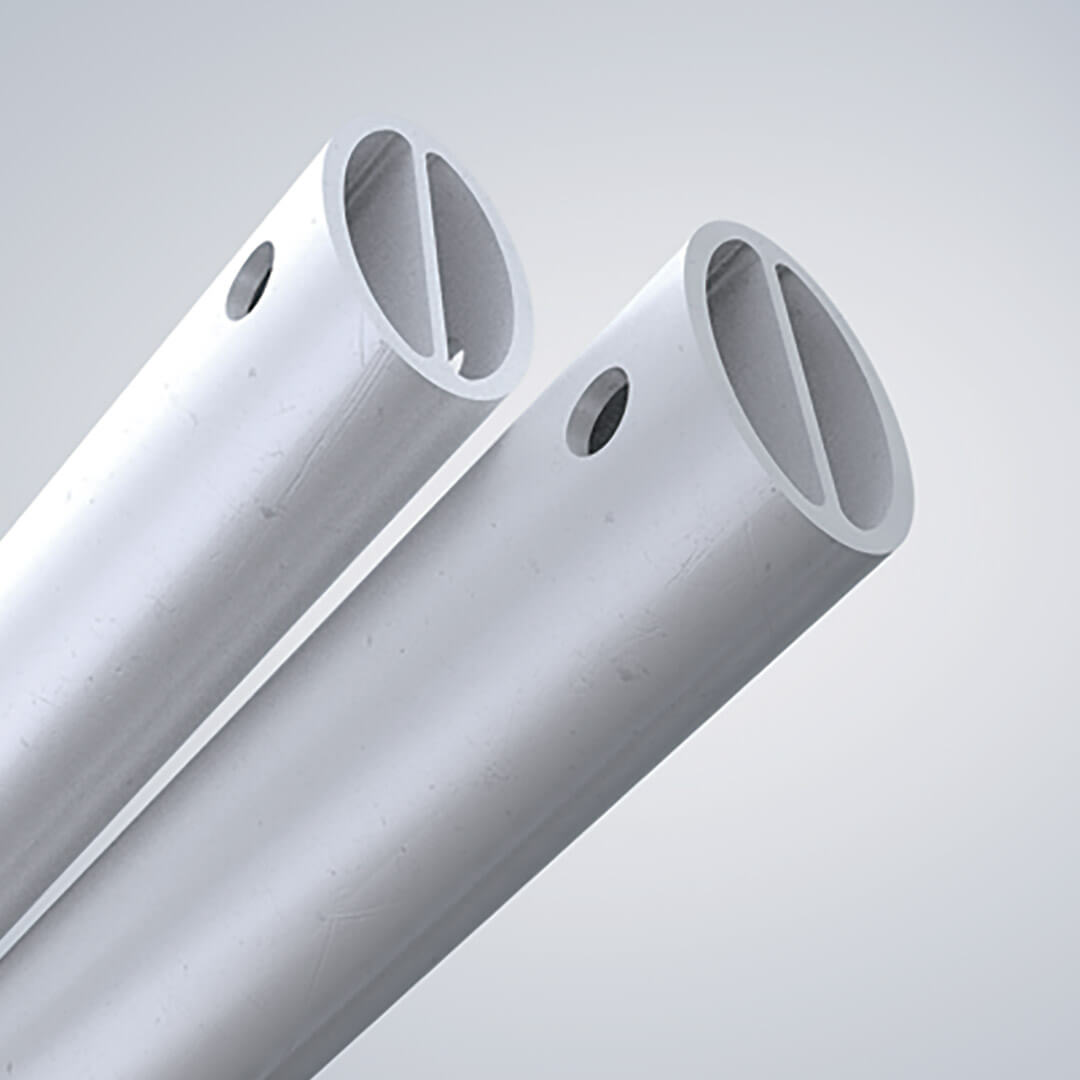

Croisillons renforcés barnum pliant V3 Pro

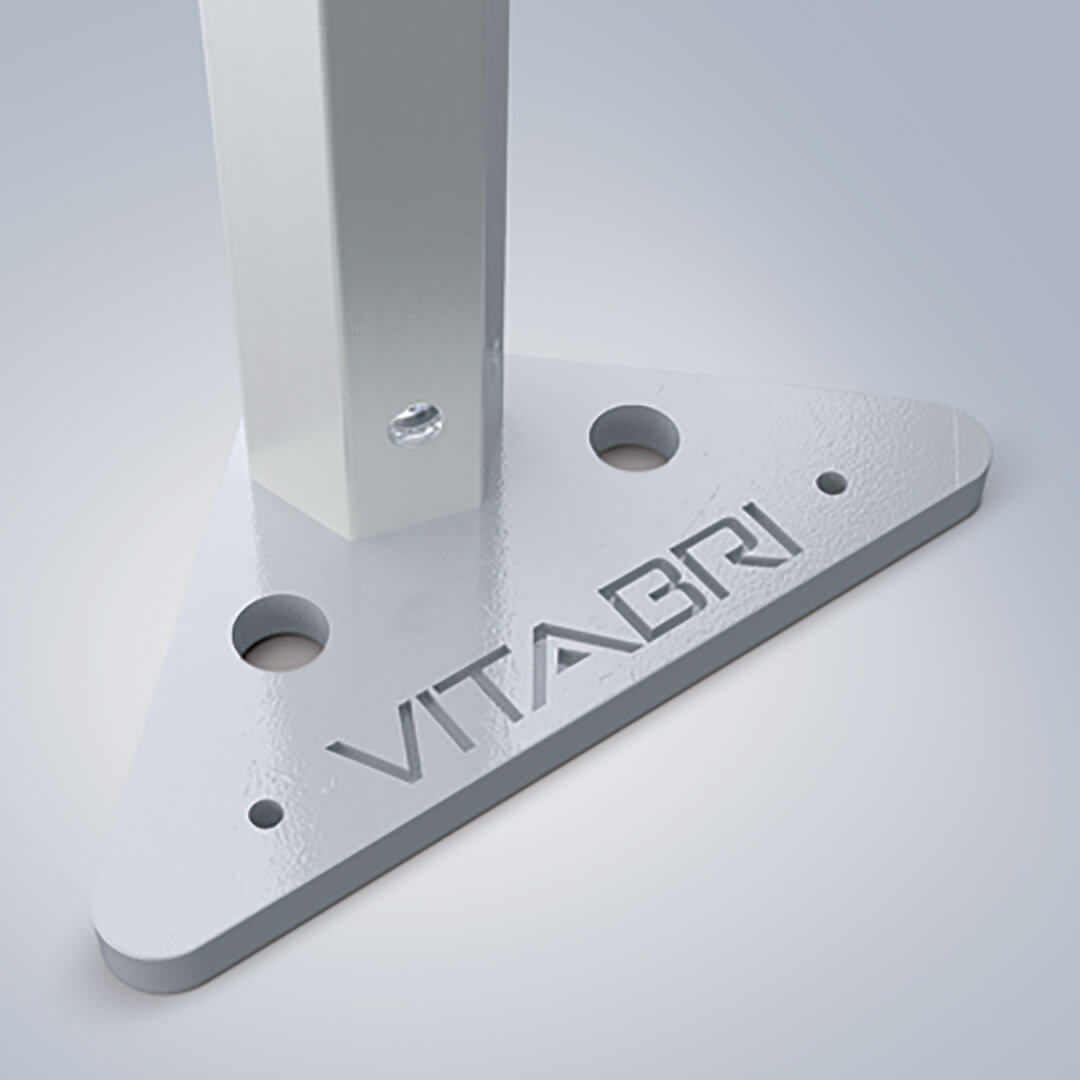

Embase barnum pliant V3 Pro

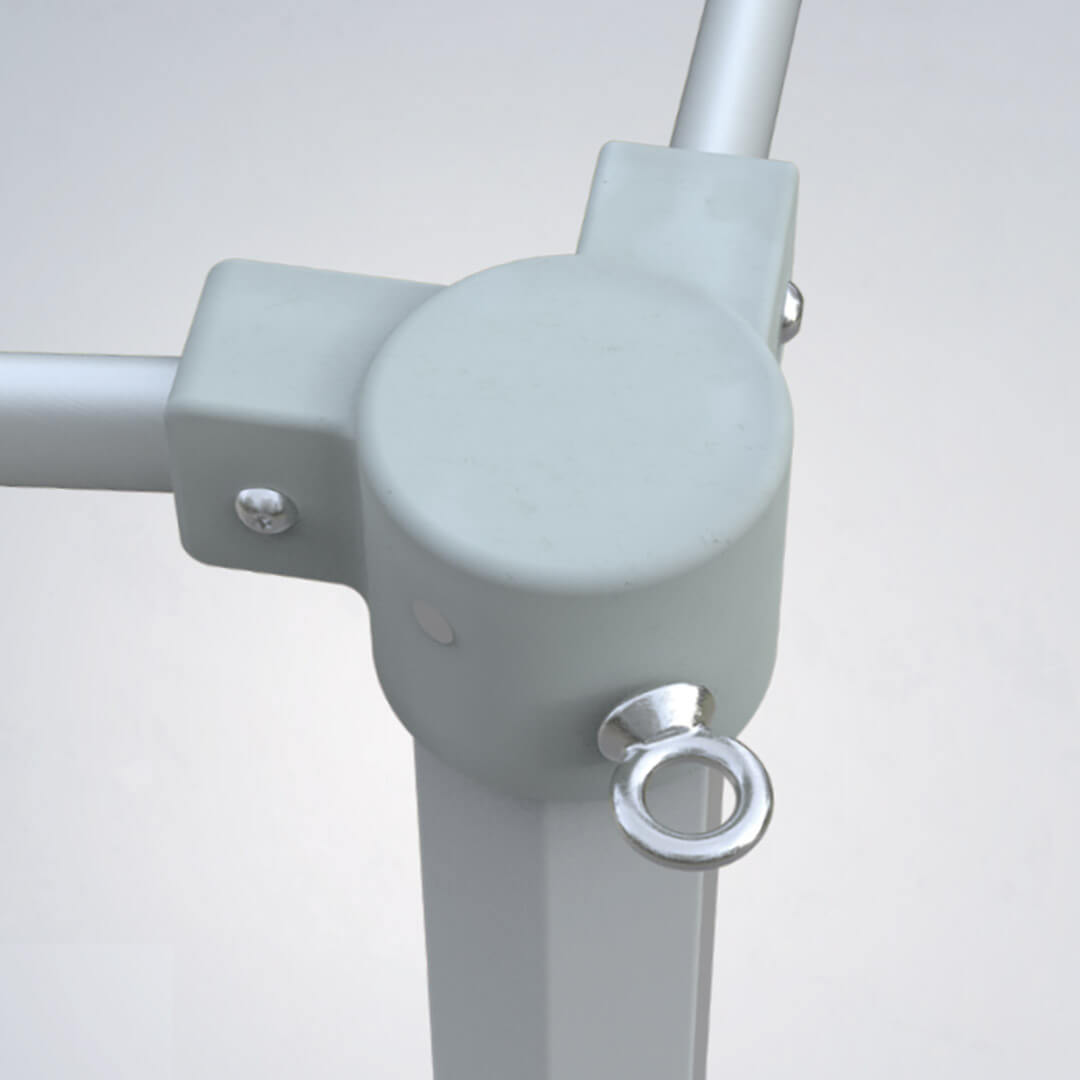

Anneau haubanage barnum pliant V3 Pro
20
dimensions
30
seconds
<1sqm
folded
100%
customizable

V3 pop up gazebo : easy to manipulate, resistant and light for an easy use

The V3 PRO gazebo is directly derived from VITABRI’s flagship product: the V3 tent.

A true reflection of VITABRI’s experience, this range is one of the best-selling and most efficient barnums in its category and is intended for professional use.

The V3 PRO is robust and lightweight. It can be set up very quickly and the height can be easily adjusted by means of indexers.

Barnum pliant V3 PRO
DimensionsOpened dimensions (m)Folded dimensions (m)Weight (kg) with PVC head 500Height under valenceRoofing heightTop foot diameter (mm)Diameter of the bottom foot (mm)
2 X 22,132 x 2,1320,35 x 0,35 x 1,56526,1From 1,95 to 2,11 mFrom 3,02 to 3,18 m4439
2 X 2 Market2,050 x 2,0500,35 x 0,35 x 1,56525From 1,95 to 2,11 mFrom 3,02 to 3,18 m4439
2 X 32,132 x 3,1650,35 x 0,50 x 1,56532,2From 1,95 to 2,11 mFrom 3,02 to 3,18 m4439
2 X 3 Market2,050 x 3,0500,35 x 0,35 x 1,56530,8From 1,95 to 2,11 mFrom 3,02 to 3,18 m4439
2 X 42,132 x 4,1920,35 x 0,60 x 1,56538,6From 1,95 to 2,11 mFrom 3,02 to 3,18 m4439
2 X 4 Market2,050 x 4,0500,35 x 0,35 x 1,56537,2From 1,95 to 2,11 mFrom 3,02 to 3,18 m4439
2,5 X 2,52,547 x 2,5470,35 x 0,35 x 1,56527From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
2,5 X 3,72,547 x 3,7760,35 x 0,50 x 1,56535,5From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
2,5 X 52,547 x 5,0260,35 x 0,60 x 1,56548From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
2,7 X 2,72,835 x 2,8350,35 x 0,35 x 1,56530,2From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
2,7 X 2,7 Market2,682 x 2,6820,35 x 0,35 x 1,56528,3From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
2,7 X 42,835 x 4,2150,35 x 0,50 x 1,56539,9From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
2,7 X 4 Market2,682 x 4,0000,35 x 0,50 x 1,56538,3From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
2,7 X 5,32,835 x 5,6200,35 x 0,60 x 1,56552,4From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
3 X 32,960 x 2,9600,35 x 0,35 x 1,56531,3From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
3 X 3 Garden2,960 x 2,9600,35 x 0,35 x 1,57531,8From 1,95 to 2,11 mFrom 3,52 to 3,68 m4439
3 X 4,52,960 x 4,4150,35 x 0,50 x 1,56541,7From 1,95 to 2,06 mFrom 3,1 to 3,26 m4439
3 X 62,960 x 5,8700,35 x 0,60 x 1,56554,9From 1,95 to 2,11 mFrom 3,1 to 3,26 m4439
4 X 43,990 x 3,9900,48 x 0,48 x 2,1549,5From 2,03 to 2,41 mFrom 3,98 to 4,36 m4439
HEXA 3Ø 2,960Ø 0,48 x 1,5034From 1,95 to 2,11 mFrom 3,1 to 4 m4439
HEXA 4Ø 4,070Ø 0,58x 1,5041,8From 1,95 to 2,11 mFrom 3,1 to 4 m4439

Technical characteristics of the V3 PRO popup gazebo

  • Pull pin height adjustment: effortless locking in place
  • 3 adjustable height settings
  • Fibre-reinforced thermoplastic connectors
  • Truss bars: 1 internal reinforcement and 2 stainless steel external reinforcements.
  • Cast aluminium base plates (10 mm).
  • Guy rope rings

Weight and dimensions

  • Aluminium section legs, Ø 44 mm and Ø 39 mm, 2 mm thick
  • Size when closed: 0.5 m²
  • Weight: 25 to 58 kg depending on the model

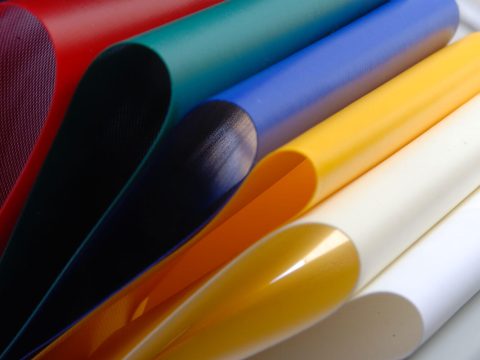

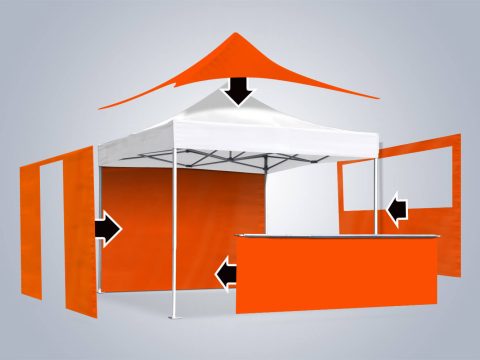

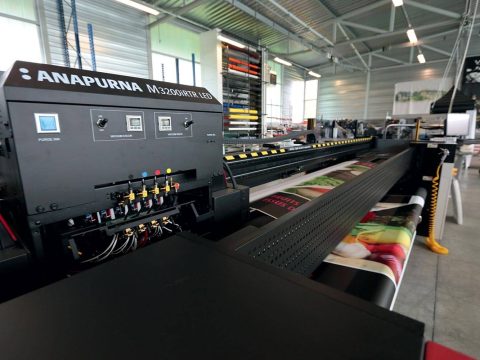

Customisation

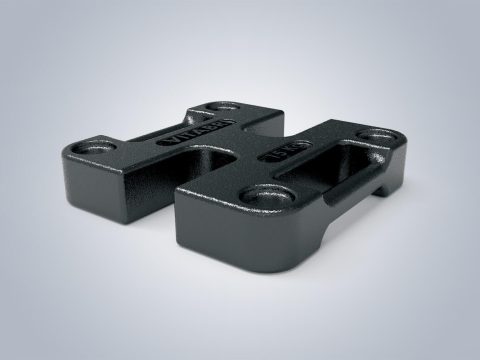

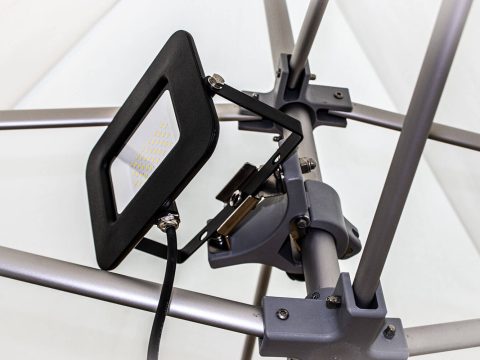

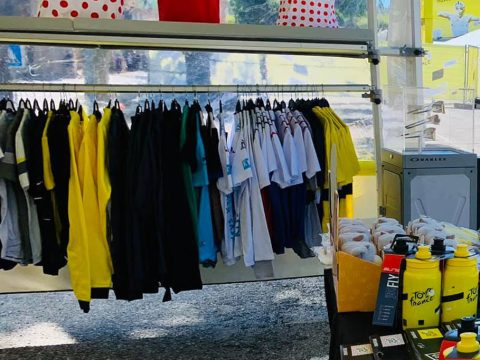

Options

Barnum pliant V3 pack M2

M2 PVC V3 pack popup gazebo: vitabri quality for an entry-level product

The M2 PVC PACK popup gazebo is suited to a variety of occasional uses. It is made of flame-retardant white PVC canvas that meets all current safety standards (certified M2).

Available in 3 sizes (3 x 3, 3 x 4.5, 3 x 6), the M2 PVC V3 PACK gazebo consists of a frame, a canopy and three basic sidewalls.

This range is not customisable.

Would you like to equip yourself with V3 pop up gazebos?

Request a quote
